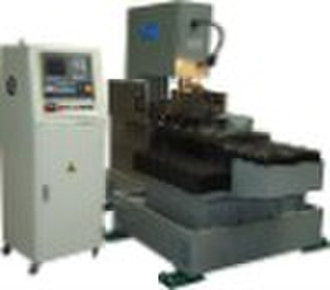

Band Saw Crystal Cutting Machine
Wenya Zhao
Contact person
Basic Information
Product introductionBYJ-QD230 Band saw-type crystal cutting machine is a special equipment to cut crystal and is appropriate to saw solar silicon single crystal material. The machine tool uses servo numerical control system for control and has high processing precision and more humanized operational control. This machine tool is an optimal combination of high precision, high rigidity and high load capacity. Main technical parameters 1.Working range Sawing diameter Φ230mm Sawing length 520mm 2.Stroke of the machine tool X-axis ( feeding slide) 400mm Z-axis ( loading slide) 500mm 3.Traveling speed Rapid traveling speed 5m/min Feeding speed 0 20mm/min 4.Band saw parameters Rotating speed of the band saw wheel (stepless) 300 1000rpm Diameter of the band saw wheel Φ560mm Band saw specification (L × W × H) 3750×40×0.7mm Or3750×38×0.7mm 5.Appearance and weight Appearance of the machine tool (L × W × H) 2495×1347×1890mm Appearance of the electric cabinet (L × W × H) 550×520×1550mm Weight of the machine tool 2500kg
Delivery terms and packaging
Packaging Detail: wooden case Delivery Detail: under the contract
Port: Tianjin Port
